Heated water cup

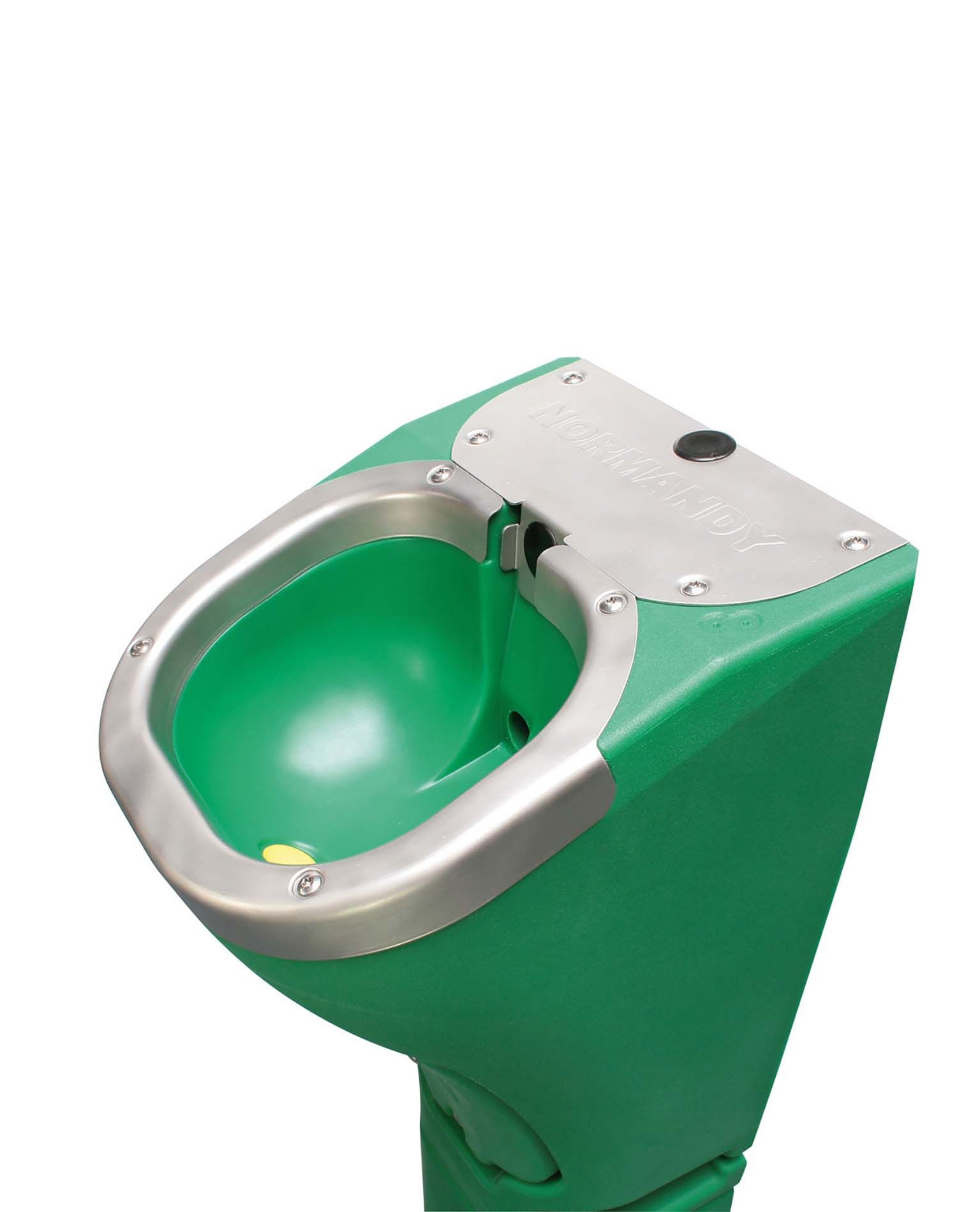

NORMANDY - Wall-mounted drinking vessel, constant water level

Product code: 1717

Wall-mounted beverage container made of durable HDPE plastic with reliable bell valve and constant water level.

Compact and space-saving solution

The NORMANDY beverage container is securely fixed to the wall (optional stand, product code A576).
Thanks to its straight edges, the container is also ideal for corners - and does not take up unnecessary space in the animal enclosure.

Comfortable and safe for animals

• The spacious basin allows easy watering.

• An adjustable bell valve keeps the water level constant.

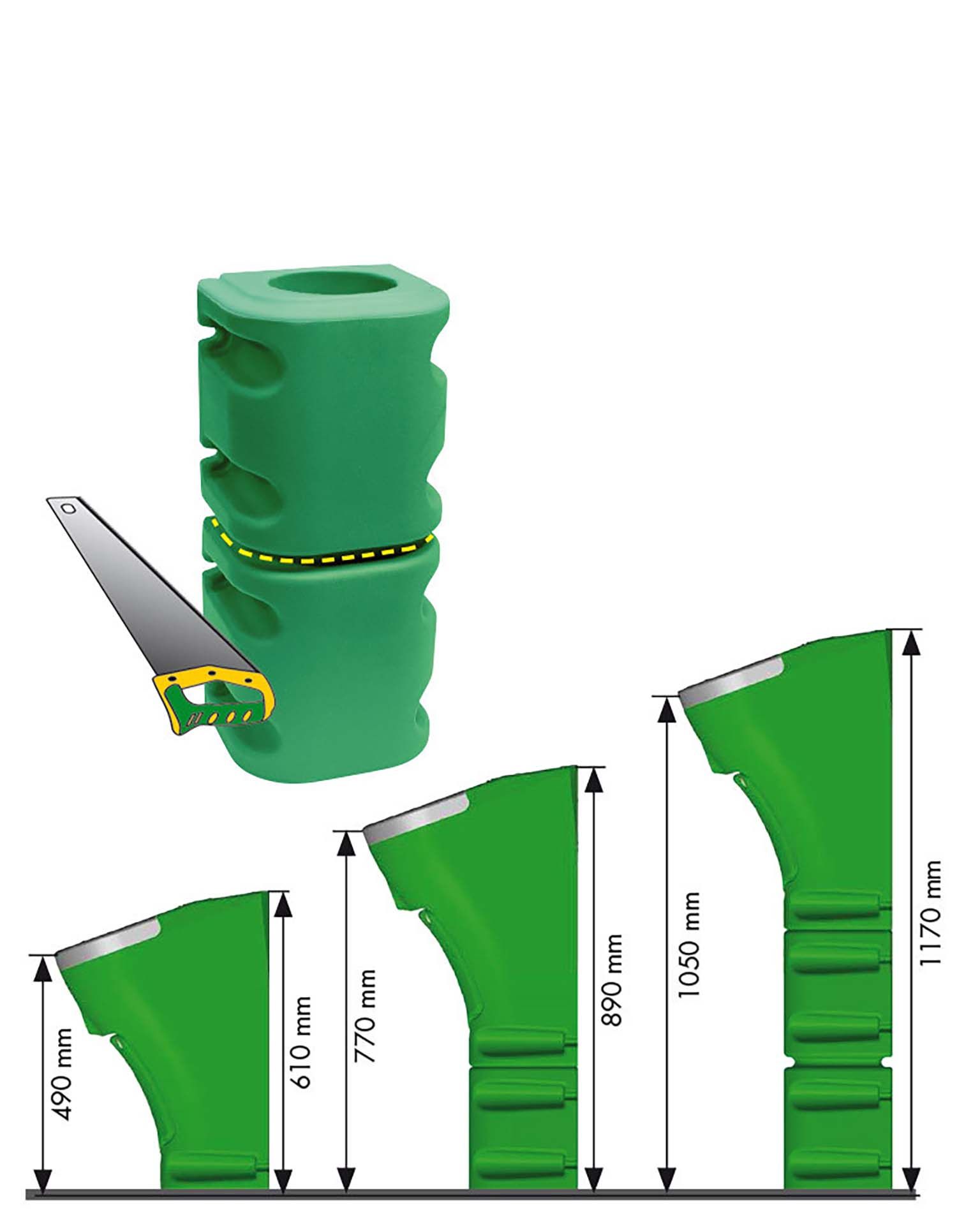

• Drinking height can be adjusted to the size of the animals by cutting the stand in two or leaving it out.

• The rounded shape prevents injuries to animals.

A durable and reliable choice

• Made from a single, food-safe HDPE plastic frame, the stand is resistant to shocks and abrasion.

• Stainless steel rim prevents animals from chewing the plastic.

• Double-walled, polyurethane-insulated PE base (A576) protects water lines and adds durability.

• The valve is protected by a stainless steel cover.

• Also available with 80 W heating element (antifreeze protection kit A396), which keeps water melted down to -20 °C.

Easy to install and maintain

• Several fixing points for wall mounting.

• Water inlet from top or bottom.

• Easy access to the water connection and the heating kit through the service door.

• Removable drain plug and smooth inner surface for easy cleaning.

Supplied individually packaged.
Also available with smooth pipe valve: Ref. 1716

Accessories and spare parts

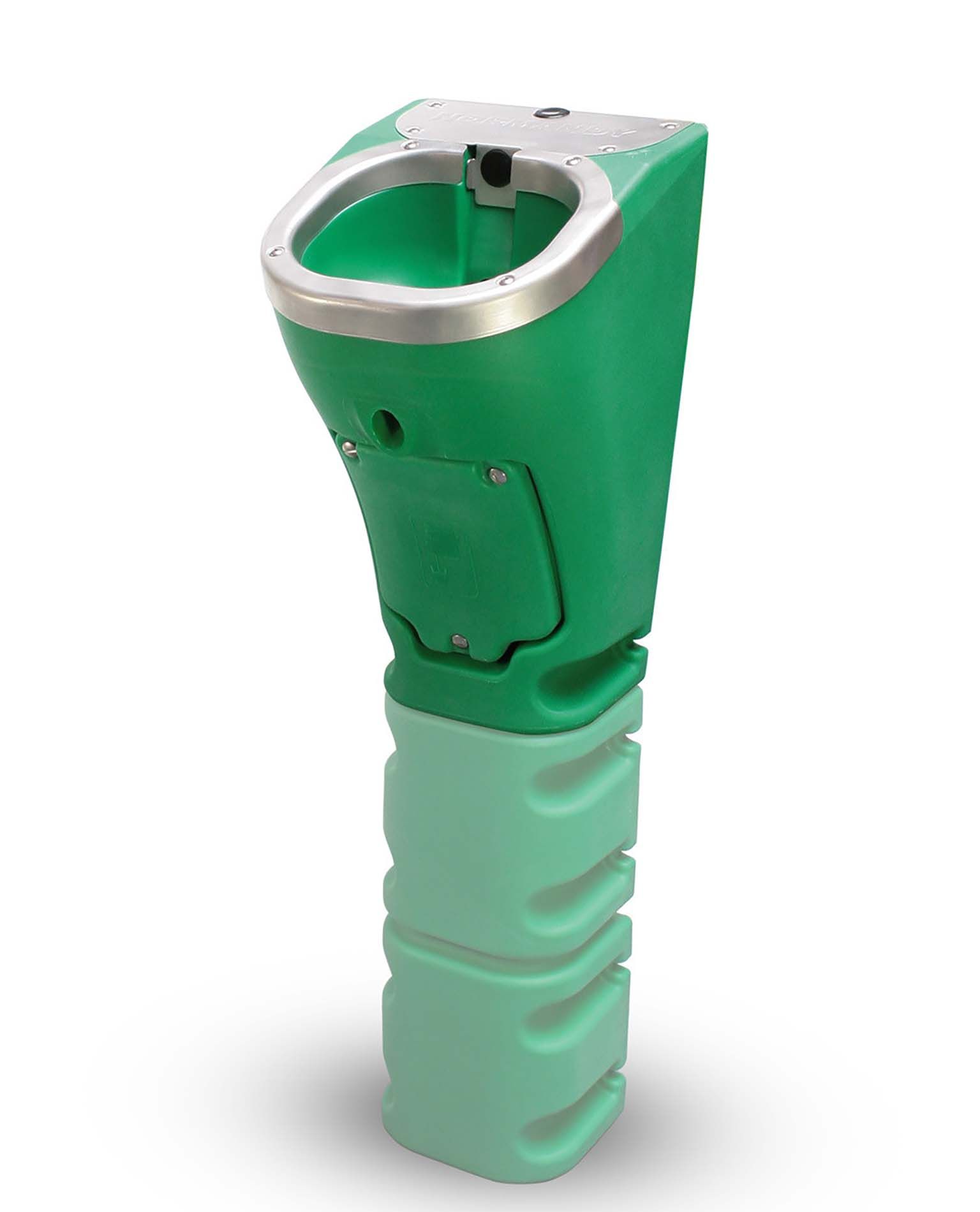

Insulated PE base for NORMANDY

Product code: A576
Double-walled, polyurethane-insulated HDPE base.
Highly impact resistant and designed for wall mounting.

• Height 560 mm - suitable for horses (drinking height approx. 1050 mm).

• Can be cut in two for cattle (drinking height approx. 770 mm).
  → One stand is sufficient for two NORMANDY drinkers.

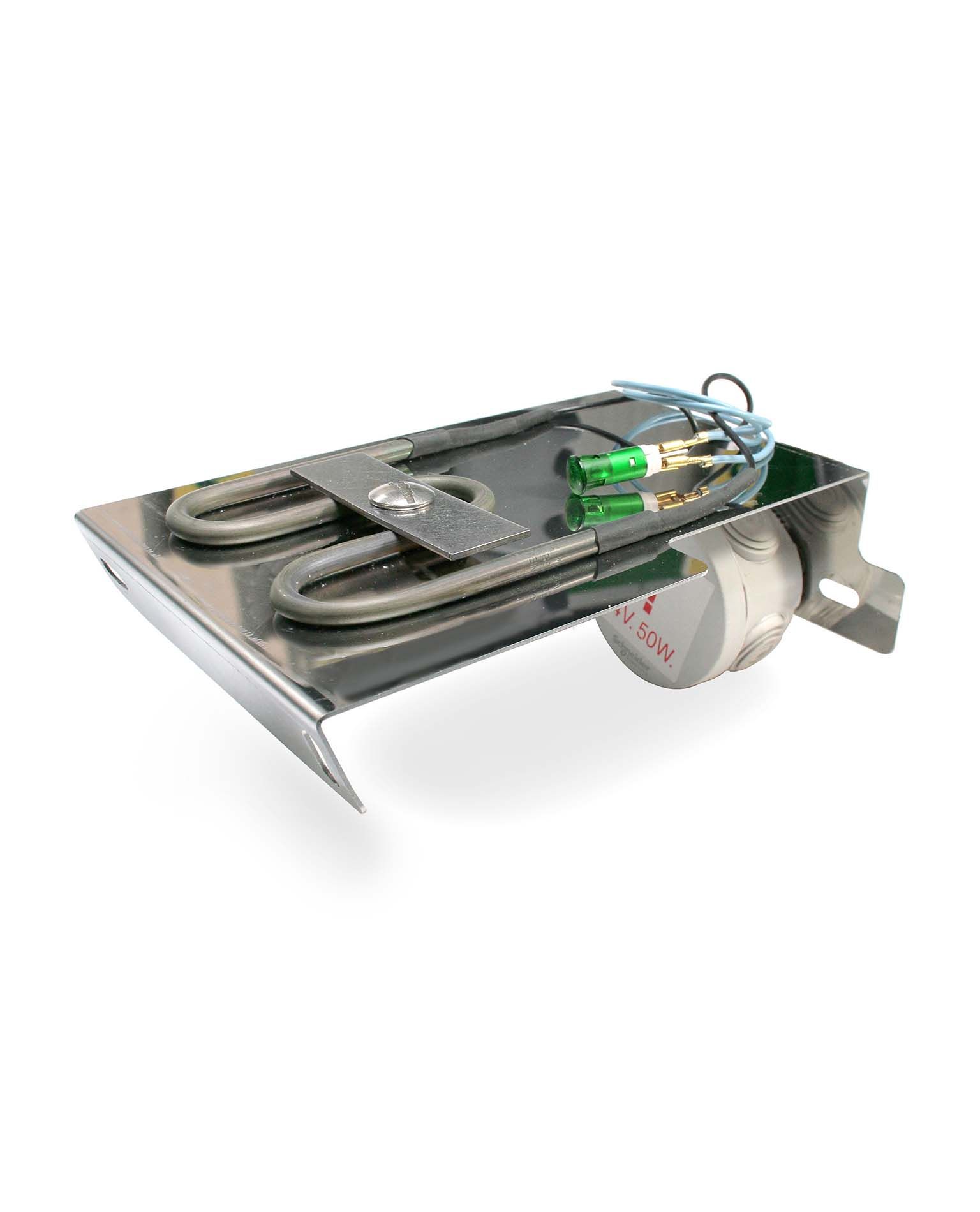

Freeze protection kit (heating kit) for NORMANDY

Product code: A396
24 V / 80 W heating element keeps water and valve melted down to -20 °C.
Easy to install through a large service opening.
Includes operation indicator light.
Note: Transformer (230/24 V) to be ordered separately.

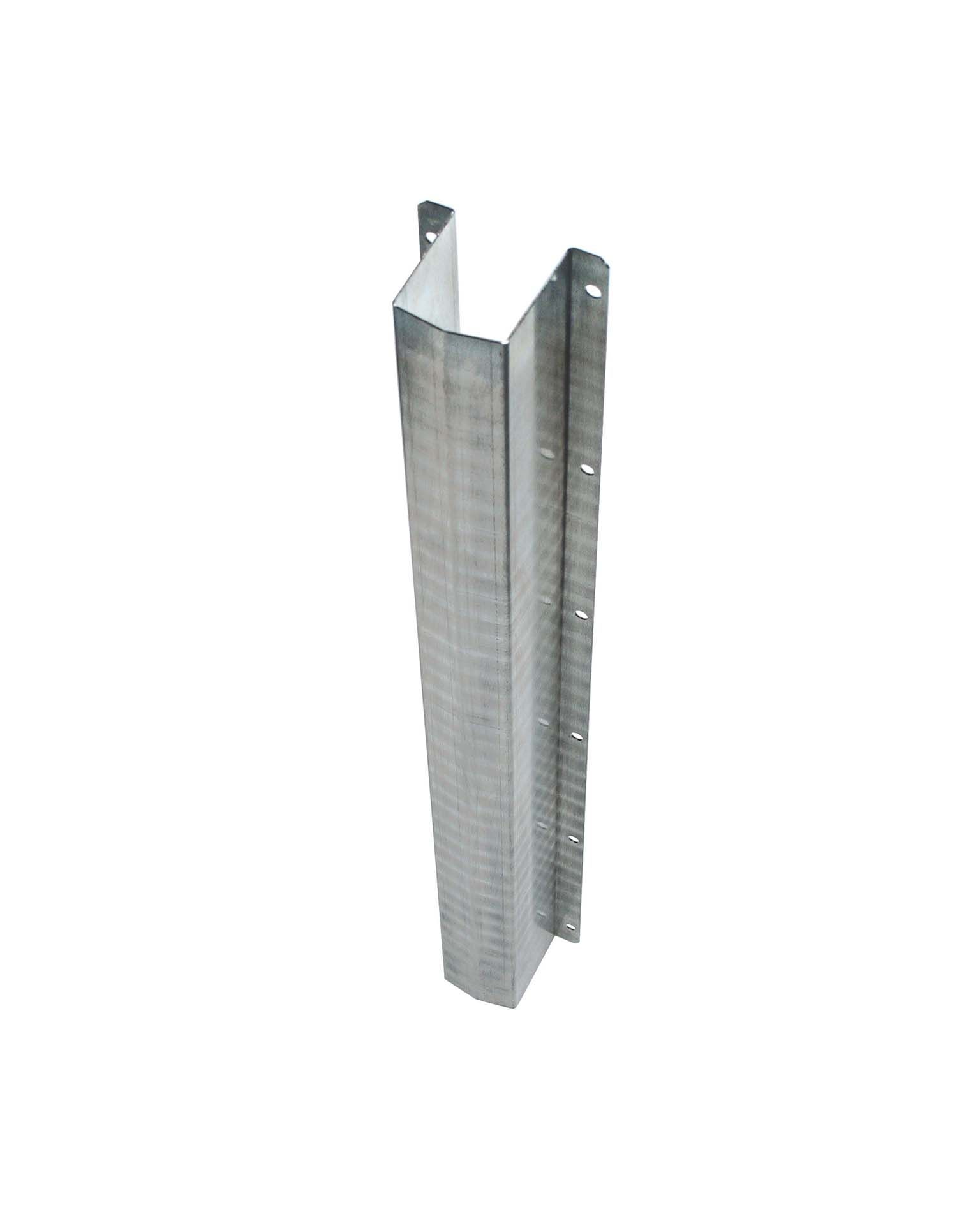

Water pipe protection frame

Product code: A358
Galvanised steel frame to protect the water line and insulators from animal bites or impacts.

Transformer 230/24 V - 100 VA

Product code: A504
Transformer 230/24 V for electric beverage containers.
Complies with European standard EN 60.742.
Suitable for two 50 W or one 100 W heating elements.

External thermostat

Product code: A532
Automatic thermostat that switches on/off according to temperature (3 °C).
Waterproof housing.
Maximum power 1200 W.

Spare part: float BIGCHO2 / LAC10 / NORMANDY

Product code: 1090992
Plastic spare part bellows for NORMANDY, BIGCHO2 and LAC10 beverage containers.
The package contains 1 float.

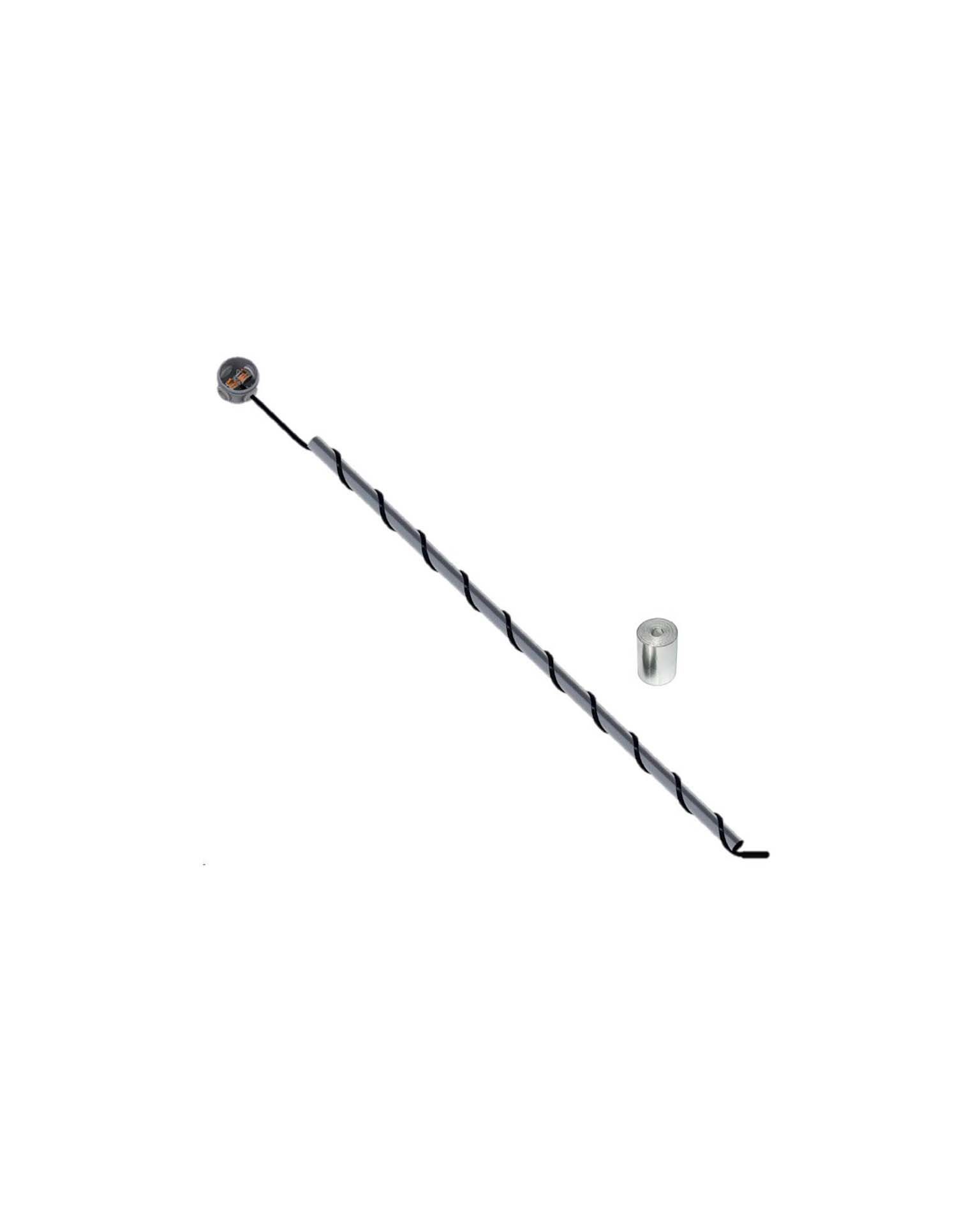

Heating cable 24 V for water line

Product code: C162
1,5 m long self-regulating heating cable to protect the water line of a beverage cup against freezing.
Includes aluminium tape for installation.

• Maximum length of pipe to be protected 1,15 m

• Power 27 W/m

• The cable automatically increases the heating efficiency in cold weather.
  Connects to 230/24 V transformer (to be ordered separately).
